I Found this while searching for a fluorophore. Very cool to watch on youtube!!

Human Blood Clotting

- Austin

Recently a colleague sent me a link to sensor sizes. Many of these are for consumer cameras, however the general references (1/3′, 2/3″ and so on) are helpful for microscopy cameras.

http://www.dpreview.com/news/0210/02100402sensorsizes.asp

- Austin

These directions will allow user control over an optical configuration to be specified at a given time-loop inside of the define/run experiment. So for instance if one wanted to trigger a shutter or light source to flash un-cage at the beginning of a high-speed acquisition, this would meet the need. These are a bit lengthy but remember the setup is only needed once!

1. Create an optical configuration that activates your pulse. You only need the configuration to be active, but note the shutter should be set to “active shutter” and CLOSED when the optical config is selected. The shutter should be set to open only when the user presses the shutter button or when the camera is acquiring.
2. Download my macro file that contains the control code needed for this to work. (If you have Quicktime installed windows will think this is a movie – make sure to Right-Click on the link and select “Save Target As”. )

3. Save the above macro into something like c:\Macros\ or wherever you can easily access it.
4. In Elements select the Macro Menu, then “Open Macro” and open the macro file.

5. Note in the macro file the lines that read “Stg_SetShutterState(3,1); this means “set the state of a selected shutter type(shutter type,Open)” . So set the first number to the shutter you want to control. (0=EPI, 1=DIA, 2=Aux1, 3=Aux2). The second number is easier – 1=open and 0=closed. ALL YOU NEED TO DO is make sure you are controlling the correct shutter, by changing the first number in the 2 lines of code in the macro to drive the correct shutter!

6. Note in the macro the “Wait(1.00); command. Where the 1.00 sits is the amount of time the shutter should remain open. For a pulse time of 500 milliseconds the code should read “Wait(0.500);
7. Test the macro at this point by running it. The desired shutter should open, wait and close. if modifications need to be made to the optical config or the code now is the time to do it!
8. Next set up a text experiment that has 2 different time phases at minimum. Click the “Advanced” button to show the advanced time controls.
9. Set the “Advanced for” box to read “Time Phase 2″
10. Select the check box that reads “Execute Command at the Beginning…”
11. Click the Arrow on the right side of the entry box and select “run macro”
12. Go find the macro file you downloaded and modified earlier and select that macro.

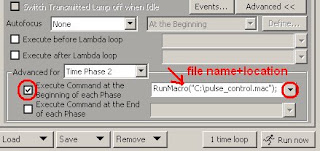

13. Your configuration should now look something like this one:
14. Set the acquisition rate you want in time phase 2.
15. Back up the experiment using the Save button.
16. When you run the macro, and you reach time phase 2 the pulse will occur at the same time as the second time phase, without interuppting the experiment flow.

- Austin

A few weeks ago I purchased an iphone. While browsing apps I found one that we can use in the research community! A company called Zem Dynamics (who also offers FRAP solutions for live cell imaging) has released a small app that can calculate minimum resolvable distance, as well as optimum camera pixel sizes for a number of objectives and magnifications.

Positive Notes

• This takes a lot of time and energy out of finding the best camera for a given optical setup. It’s also a good way to find out how much binning will affect a given input image and how far one can bin when using various magnifying tube lenses or c-mounts.
• Simple operation and controls eliminates a lot of potential error.
• The app sells for $1.99. At this price you can skip that cup of afternoon coffee and break even on owning the tool!
• This app loaded and ran very quickly with no crashes. I ran it on an iPhone 3G-s.
• Pressing the Info button on the app switches the view from resolution to field of view calculations. This is very helpful when determining how much area a given camera will collect, or to find the best match between a camera and magnifying lenses.

Negative Notes

• Pressing on the output values (either the pixel size or the resolution) brings up the iphone keyboard. There is no way to hide the keyboard or complete an entry of pixel size, so the only way to hide the keyboard is to close the application.
• I’d like to see additional numerical apertures to support more objectives (and other scopes like stereo’s and macrozoom systems).

Conclusions

From my calculations this app is using the standard Nyquist criteria of (0.61*emission)/Numerical Aperture. I have contacted the manufacturer to discover the pixel size calculations, however it seems to be ~2.5 pixels per diffraction limit. This is a good compromise setting to use, (see my resolution calculations here).

Overall this is a well designed and very useful app. I’d suggest anyone using or working with microscopes or imaging systems will find this a helpful tool. Of course you’ll also need to own an iphone to run it

- Austin Blanco

This is a quick post – things are busy! Andor has a white paper and information up on a new “Scientific CMOS” sensor. Have they overcome the limitations to CMOS sensors for Scientific applications? This could really change the landscape for microscopy imaging!

- Austin

These days it’s not uncommon to hear about consumer cameras with 10+ megapixel resolution. To the average consumer this seems like a good thing. How can more pixels be anything but good, right? In reality there are several tradeoffs to using more pixels. This is especially true for any scientific imaging (this really applies to low light an/or quantitative imaging such as microscopy and astronomy). So what are the downsides?

First let’s look at the concept of a pixel. Pixels are physically sized on a CCD or CMOS sensor. For an example of pixel architecture check out this page. The physical size of a pixel affects several aspects of image acquisition:

1. Dynamic Range
2. Sensitivity
3. Resolution
4. Speed

Most people simply think “bigger pixels means less resolution” or “more pixels result in more resolution”. This isn’t the only thing that is affected by pixel size. A more interesting question to ask would be “What am I sacrificing by using smaller pixels?”. Of the four performance aspects above three are negatively impacted when using smaller pixels. These are:

1. Dynamic Range
2. Sensitivity
3. Speed

Dynamic Range

The dynamic range of a sensor is first determined by the full well capacity(FWC) of a single pixel. This is a measurement of how much energy the pixel can hold before either becoming nonlinear or before the energy spills out of the pixel into neighboring pixels (called blooming). Smaller pixels simply cannot hold more energy due to physical size, so smaller pixels = less dynamic range. Let’s compare two common chips – the Sony ICX-205AL CCD, used in the Photometrics CoolSNAP cf2 camera (and many others), with the Sony ICX-285 CCD, used in the Photometrics CoolSNAP HQ2 (this ccd is the most prevalent in modern microscopy cameras).

• The 205 CCD shows a FWC of 9,700 electrons.
• The 285 CCD shows a FWC of 16,000 electrons.
• Note that the 205 chip has a pixel size of 4.65um, while the 285 has a FWC of 6.45um.

In the case of these two sensors, a 2x increase in pixel area provided a 65% increase in FWC. The larger chip has more FWC, so I can detect a range of brightness with more accuracy, or have more range of bright to dark, or more dynamic range.

Sensitivity

This is an easy one: If I take a given area of my image being projected onto my chip, I chop that area (or that brightness value) up more times if I have smaller pixels. Lets assume I have one chip using 5×5um pixels, with another that uses 10×10um pixels. Let’s also assume the light being projected onto the sensor area is 100 photons per 100um square area. Using my smaller pixel chip each pixel could collect 25 possible photons. Using my large pixel chip each pixel can collect 100 possible photons, so the larger pixel camera can grab more light per pixel than the small pixel camera.

Speed

The argument I make here isn’t really a technolocal limitation but more a common product/market limitation. All of the cameras we use are set up to collect an image projected from a microscope into roughly a 1″ diameter area. So I am limited in how much area I can use on my chip. Because of this if I have bigger pixels I cannot simply make a gigantic chip that has say 1000×1000pixels, as it’s possible the corners of my chip won’t have any light projected from my scope. This means that intrinsically I’ll either find chips with a lot of small pixels, or chips with fewer large pixels.

When considering speed there are several factors: exposure time, analog to digital conversion time, and “frame shift” time. (I’m using this term to conver interline shift and FT operations for those purists out there). Now if you look at any data sheet you’ll notice there is some “top speed” a camera can go. You can bin the camera and use a small readout array but you hit a limit – why?

Let’s assume we have a camera of 100×100 pixels that can expose an image and get enough light in 10ms. Let’s also assume our A/D converter that turns electron values into digital numbers can operate at very high speeds, say 100Mhz. In a case like this our camera can theoretically run at 100 frames per second, which is quite fast. Now what aspect of the system will stop me from say driving the camera at 10,000 fps? If we consider that the camera must move each pixel’s energy off of the chip, using shifts of energy from one pixel to another or into some series of registers, whatever time it takes to move from pixel to pixel will become important. This is referred to as the shift time or shift rate. Depending on the architecture of the camera this time will affect the camera to different degrees, but ultimately this is a measurement of “How fast can I move energy across my chip?”. This bucket-brigade type of energy transfer is what takes a electron charge in pixel 1A, and spits it out the other end of the chip into the A/D converter.

So using our fake camera here let’s say it takes our camera 50 microseconds to move from one pixel to another. Then let’s consider how many moves must be made to get pixel 1,1 out the other end of the chip at position 100×100. Basically pixel 1,1 needs to be moved 100 pixels down and 100 pixels over. So 100×100=10,000. Each shift = 50us, so 50us*10,000 = 500,000us, or 500ms. So using our fancy super fast camera we can only go 2 frames per second!!!

Obviously the example above is using excessively show shift rates so I can make my point. The bottom line here is that shift times do have an impact. So how does this relate to big pixels? Well if I have bigger pixels we already found that I must use less of them. Less pixels = less shifting that needs to occur, so the impact of shift rates becomes less! Ultimately you’ll find that cameras like a 128×128 EM system can go up to 4000 fps, whereas a 512×512 EM system only goes up to 500fps, with the difference being shift rate*pixel count.

Conclusions

So many times I am asked why big pixels could possibly be better. Now you know! Don’t let the hype of “megapixels are cool” lead your lab into an inappropriate camera for your research. Remember that the camera is a detector, just like other instruments. While the appearance of the image may suffer with large pixels, the data contained in the image can be more informative and accurate than data collected using high resolution systems. Try to prioritize what performance aspects will aid your area of study, and keep these aspects in mind when finding the right camera for your work. You’ll be happier in the end with the right tool for the job.

- Austin

You can find the latest builds of Elements Here:

NIS Elements AR or BR Build 548

NIS Elements D Build 548
